90 Degree

The Dorlec Construction System offers a choice of four 90 degree profile options and eleven 90 degree corners, which form the backbone of the system that combines great strength and design flexibility.
Ninety Degree Angular Components.
Main frame members

DLM491(20S)

Illustrated.

DLM498(20SW) As DLM491 but with one flange 17.5 wide.

DLM516(20R)

Illustrated.

DLM499(20RW) As DLM516 but with one flange 17.5 wide.

DLM492(30S)

Illustrated.

DLM496(30SW) As DLM492 but with one flange 17.5 wide.

DLM103(30R)

Illustrated.

DLM134(30RW) As DLM103 but with one flange 17.5 wide.

30R Member on 3rd leg
20R Member on 3rd leg
30S Member on 3rd leg
20S Member on 3rd leg
20S Member on 2 legs
DLC515
DLC514
DLC572
DLC512
30S Member on 2 legs
DLC488
DLC574
DLC474
DLC575
20R Member on 2 legs
The main 90° frame members are shown in the top panel. The formal part numbers for each are followed by the easily remembered descriptive code’s which differentiate between the 4 sub systems contained within the Davalow Dorlec system. 20 for the smaller members and 30 for the larger. S & R refer to the section external profile, either square or radiused.
DLC519
DLC513
30R Member on 2 legs

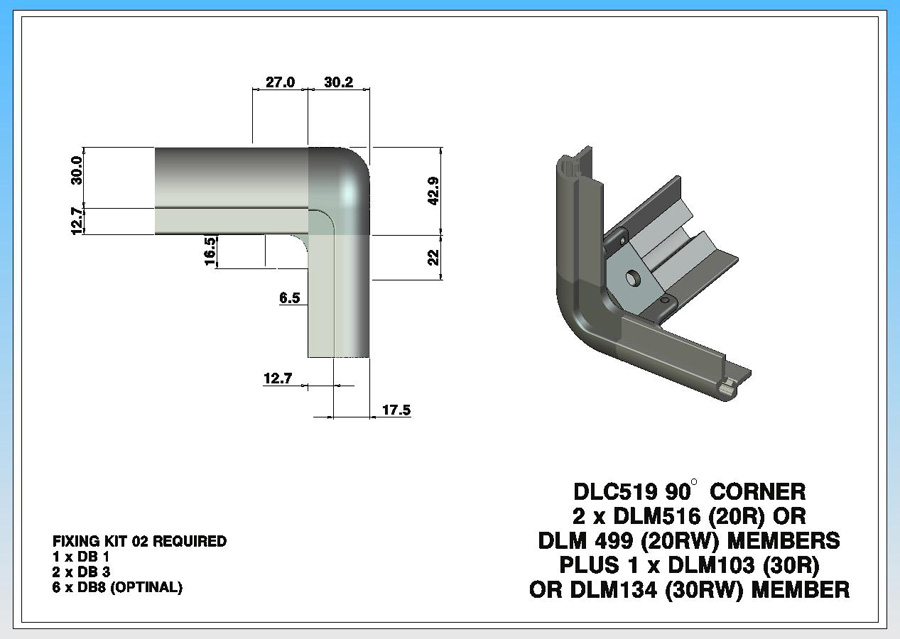

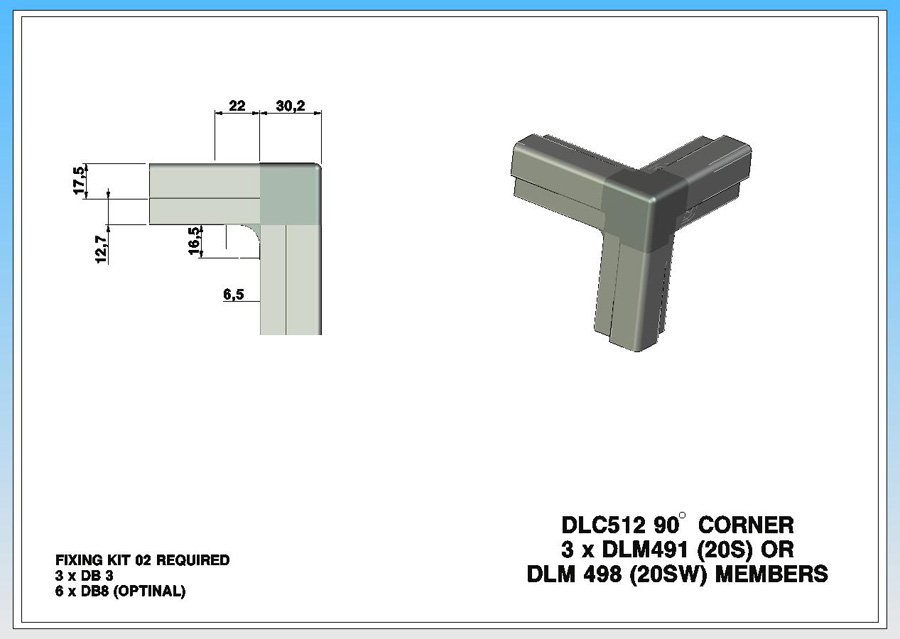

In each case, W is added to indicate a section with a wider, 17.5mm wide flange suitable for 19″ Rack mounting. It can be seen from the matrix below, that corners are available which enable both the size and profile of members to be varied within a frame. Detail drawings of each component are available to view by clicking on the appropriate image. All corners in this group are die cast.
DLC100
